14-Pin Conversion DB15 Pin 9 Needle Wire Harness For Automobile & Truck Diagnostic Cable

Mingching Electronics Technology Co., Ltd. is one of the most professional manufacturers and suppliers of 14-pin conversion db15 pin 9 needle wire harness for automobile & truck diagnostic cable in China, also supports customized service. Welcome to wholesale high quality 14-pin conversion db15 pin 9 needle wire harness for automobile & truck diagnostic cable for sale here from our factory. Also, free sample is available.

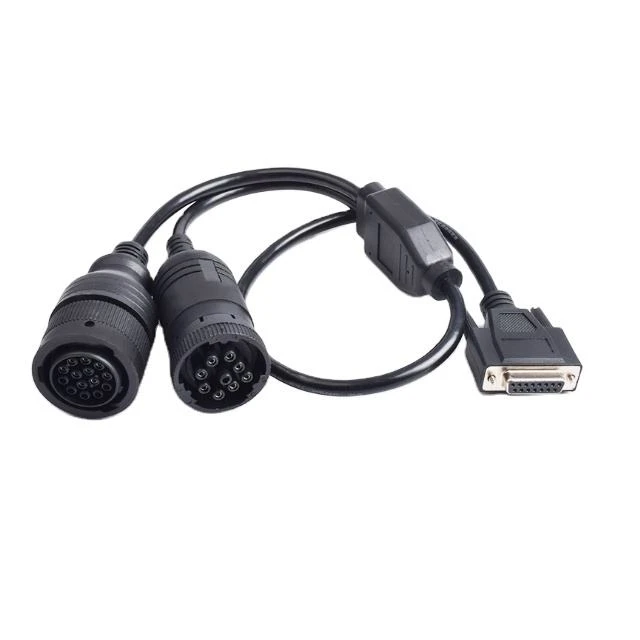

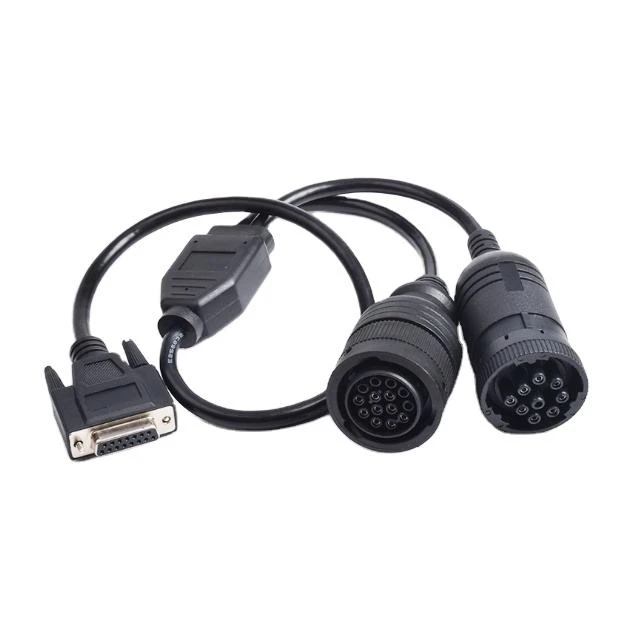

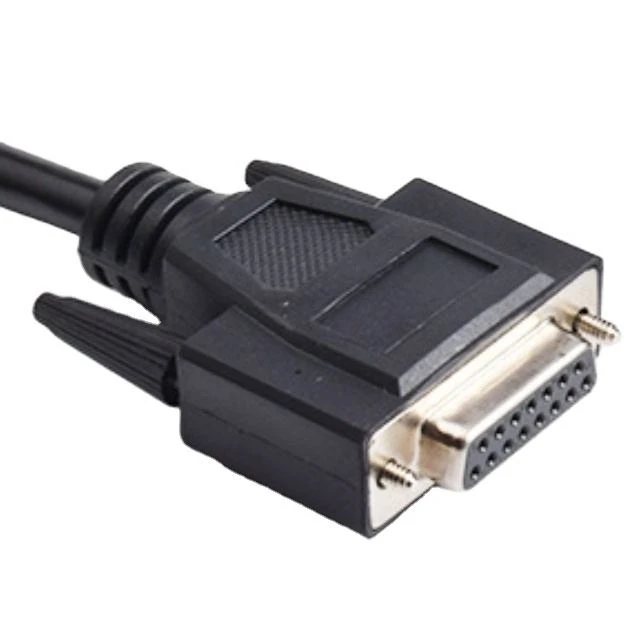

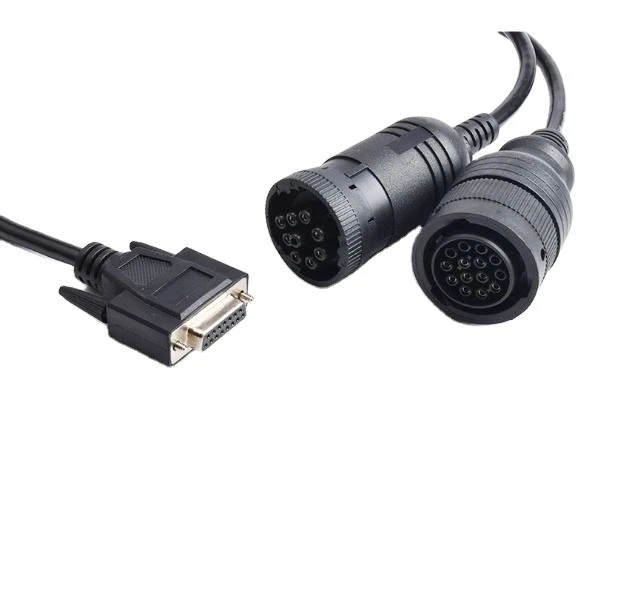

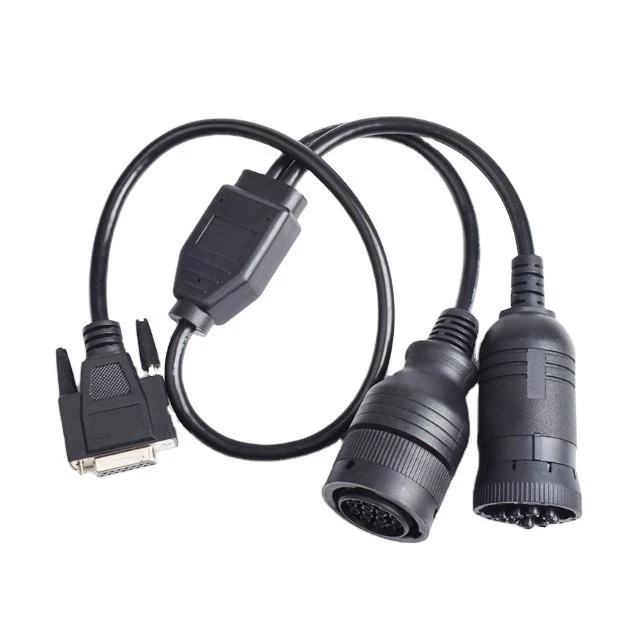

Designed as an industrial-grade data bridge for heavy-duty diesel engine ECU communication, this diagnostic adapter cable features a standard DB15 male connector on one end for linking with mainstream diagnostic tools like Caterpillar (CAT) ET3/ET4 or laptops. The other end splits into two circular aviation connectors (9-Pin and 14-Pin), corresponding to different diagnostic channels under the J1939 protocol. It allows simultaneous connection to engine control units from brands like Cummins, Delphi, SANY, and more. Core functions include reading fault codes, monitoring real-time data streams, parameter calibration, system programming, and hour meter calibration. Supporting dual 12V/24V systems, it is compatible with both older and newer vehicle models, ensuring uninterrupted communication in complex working conditions.

• Dual-Port Efficiency: DB15 to 9-Pin + 14-Pin Y-splitter design for seamless compatibility with CAT, Cummins, and other heavy-duty equipment.
• Industrial-Grade Interference Resistance: Double shielding with oil-resistant jacket ensures zero data loss in harsh engine compartment environments.
• Full Protocol Compatibility: Supports J1939/J1708/CAN Bus with 12V/24V auto-adaptation to meet complex diagnostic needs.
• Highly Reliable Connection: Gold-plated contacts with threaded locking aviation connectors boast a 5,000-cycle insertion lifespan, preventing accidental disconnections and ensuring long-lasting durability.

• Construction Machinery Maintenance: Ideal for ECU testing and firmware flashing on CAT C7/C9/C13/C18 series excavators, loaders, and bulldozers. Works seamlessly with CAT ET software for in-depth diagnostics.
• Commercial Fleet Management: Widely used for OBD remote monitoring and emissions compliance testing on Cummins ISX/QSX heavy-duty trucks, Delphi trucks, Volvo, and Isuzu vehicles. Supports J1708/J1939 dual protocol switching.
• Aftermarket Services: Provides independent repair shops with an efficient "dual-port" solution, eliminating the need to frequently swap cables when testing multiple brands, thereby improving bay turnover rates.
• Advanced Feature Expansion: Supports "Hour Meter Adjustment" and "Mileage Correction" functions, allowing you to adjust engine runtime or reset maintenance cycles without removing the ECU. Perfect for used equipment evaluation and rental fleet management.

• Industrial-Grade Protection: Constructed with an oil-resistant, high/low-temperature (-40℃ to +85℃), and UV-resistant jacket to withstand harsh engine compartment environments, including oil spills, vibrations, and extreme temperature fluctuations.
• Strong EMI Shielding: Built-in dual-layer metal braided mesh and aluminum foil effectively suppress high-frequency interference from ignition systems, alternators, and inverters, guaranteeing zero packet loss during data transmission.

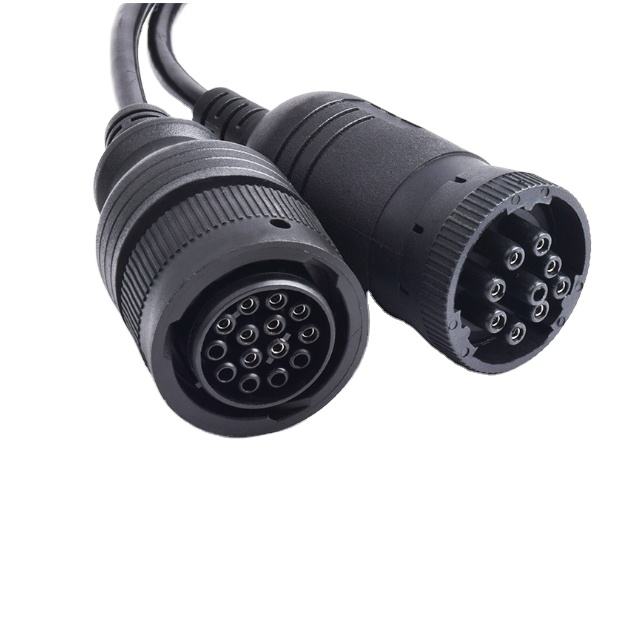

• High-Reliability Connectors: The 9-Pin and 14-Pin aviation plugs feature gold-plated contacts and a threaded locking mechanism to prevent loosening and oxidation, ensuring stable long-term contact.
• Flexible & Bend-Resistant Core: Internal wires are made of multi-strand fine copper wire with silicone insulation, offering a small bending radius and high resistance to breakage. Perfect for routing in tight spaces and frequent mobile operations.
• Precise Pinout Definition: Prevents incorrect connections that could damage the ECU, ensuring communication safety.

• Repair Shops: Technicians can quickly pinpoint issues like engine misfires, turbocharger abnormalities, and injector faults by connecting the diagnostic tool to the vehicle.
• Field Operations: Ideal for instant troubleshooting in off-grid environments like mines and construction sites when paired with portable diagnostic tools.
• 4S Dealerships / Specialized Repair Centers: Used for pre-delivery inspections, warranty fault replication, and technical analysis of customer complaints.
• Used Equipment Appraisal: Reads ECU historical data and engine hours to verify the true usage of the vehicle and avoid the risk of tampered hour meters.
• Fleet Maintenance Centers: Batch-tests multiple vehicles and uploads data to management platforms for predictive maintenance.

OEM-Level Quality: Manufactured strictly according to SAE J1939-13 standards with precise pinouts, eliminating the risk of ECU damage caused by faulty cables.

Scenario-Based Design: Engineered to address the pain points of heavy-duty machinery maintenance, optimizing cable flexibility and connector protection for highly efficient and reliable diagnostics every time.

Full Lifecycle Support: We provide value-added services including custom cable lengths, pinout consultation, and troubleshooting guides to support the growth of your repair business.

Get in Touch for a Custom Solution

Whether you are a heavy equipment repair shop, a commercial fleet manager, or an independent technical service provider, we have the right diagnostic cable solution for you. Click "Request a Quote" now, and our technical consultants will provide a custom quote and technical support within 24 hours.
