Mingching Electronics Technology Co., Ltd. is one of the most professional manufacturers and suppliers of machine cable assembly in China, also supports customized service. Welcome to wholesale high quality machine cable assembly for sale here from our factory. Also, free sample is available.
Types of Machine Cable Assemblies We Manufacture
We build every machine cable assembly to customer requirements rather than asking you to adapt your design to a catalog part. The main types of machine cable assembly below cover most requests we receive.

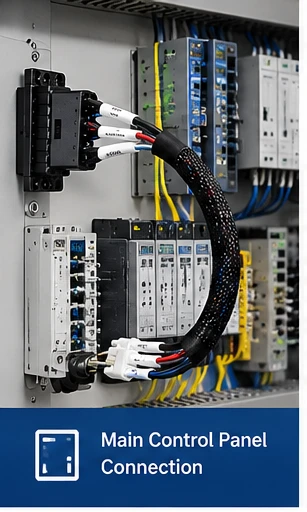

Control and PLC Machine Cable Assemblies
Point-to-point and multi-branch cables between PLCs, I/O modules, control cabinets and field devices. A control machine cable assembly usually needs careful pinout verification, which we check on every pin to prevent reversed wiring.

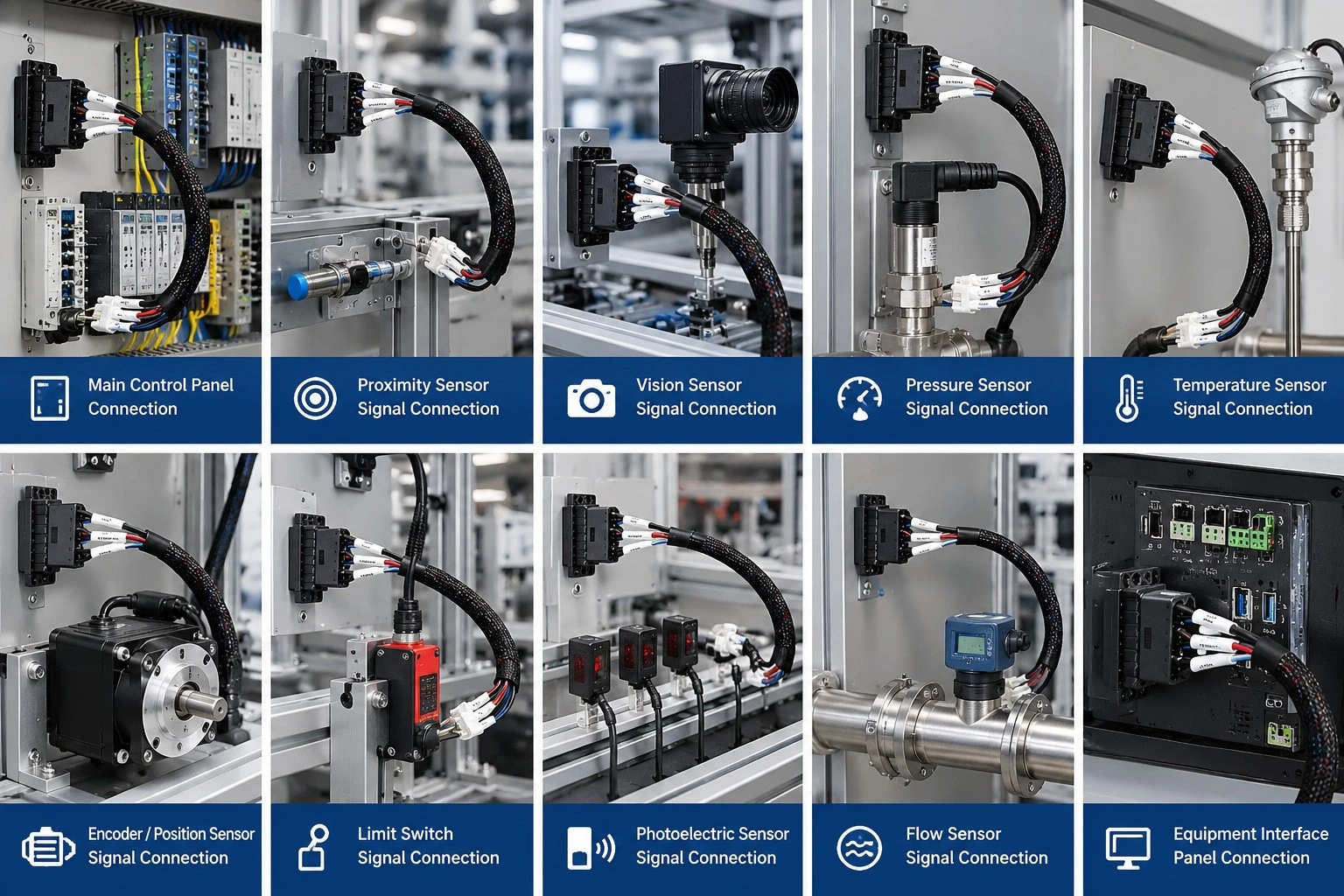

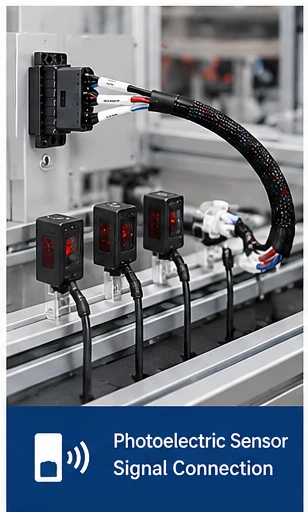

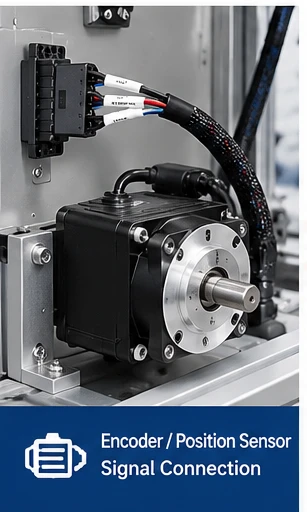

Sensor and Signal Machine Cable Assemblies
Machine cable assemblies that carry low-level signals from sensors and instruments. These often call for shielded construction and secure, locking connectors so signals stay clean and connections stay seated.
Robot and Automation Machine Cable Assemblies
Machine cable assemblies for robotic cells and automated equipment, built to the routing and connector requirements of your design. If your application involves continuous flexing, tell us early so we can select suitable cable construction and confirm it with you at sampling.
Shielded Machine Cable Assemblies
Foil and braid shielding in a machine cable assembly for VFD and other electrically noisy environments, terminated to your specified method.
Power and Wiring Harness Machine Cable Assemblies
Multi-branch machine cable assemblies and wiring harnesses with defined crimp processes, branch structures, labels, heatshrink, convoluted tubing and mounting clips.
Custom Machine Cable Assemblies
If your equipment does not fit any category above, that is normal. Most of our work is custom. Give us the connection you need and we will define the details with you.
Custom and Build-to-Print Machine Cable Assembly Services
Our approach to machine cable assembly starts with your actual application. Whether you provide a complete engineering drawing, a physical sample, a product photo or only a basic description, we can start with what you have and define the rest together.
What We Can Customize
Wire gauge and insulation
Connector brand and part number (TE, Molex, Deutsch, JST, Aptiv, Phoenix Contact, WAGO, HARTING and others)
Cable length, pinout, branching and routing
Shielding, heatshrink, convoluted tubing and mounting clips
Labels and packaging (anti-static, moisture-barrier or custom)
Our Build-to-Print Process
Submit: Send a drawing, sample, photo, pinout or application details. Incomplete information is fine.
Evaluate: We review connectors, wire specification, terminals, routing, shielding and certification needs with you.
Sample: We build a prototype to validate the assembly process and production yield.
Production: We lock the specification, inspection points, work instructions, first-article and sampling plan, then move into volume production.
We verify key steps such as terminal crimping, connector assembly, pinout, branching and shielding at the prototype stage. This is what allows an approved machine cable assembly sample to transfer into mass production without a change in process. No "sample standard, production standard."
One Engineer, Start to Finish
One engineer follows your project end to end, so you never have to re-explain context. We send updates at each milestone (sample complete, production started, pre-shipment photos), which keeps communication smooth across time zones.
Sample Lead Time and MOQ
Samples of a custom machine cable assembly can be ready in as little as 7 days once the specification is confirmed. Our minimum order quantity is 10 pieces, so you can validate a design with a small batch before committing to volume. Production lead time for larger orders depends on quantity and component availability, and we confirm the schedule before you place the order.
Accessory Coordination
If your project also needs plastic molds, metal parts or other components, we can coordinate them with the machine cable assembly under one purchase order.
Machine Cable Assemblies Built for Harsh Industrial Environments
A machine cable assembly often works in places that are hard on cables: electrical noise, moisture, dust, temperature swings and vibration. The right construction depends on your operating conditions, so we ask about the environment before we recommend materials.
|
Environmental Challenge |
How We Address It |
Typical Use |
|
Electrical noise (VFDs, drives) |
Foil and/or braid shielding |
Motor and drive areas, control cabinets |
|
Moisture and dust |
IP67-rated sealed designs |
Washdown, water treatment and outdoor-exposed equipment |
|
Temperature cycling and UV |
Material selection per requirement; temperature cycle and UV aging tests available |
Equipment with wide temperature swings |
|
Mechanical stress |
Secure connector seating, secondary locking, strain relief per drawing |
Vibrating or frequently handled equipment |
|
Oil and chemical exposure |
Jacket materials selected for the fluids present |
Machine tools, coolant areas |
Because "the same connector" can behave very differently in different settings, we design each machine cable assembly for your environment, not for a generic datasheet. For oil, coolant or flexing applications, tell us the fluid, the temperature range and the movement involved, and our engineers will recommend a construction for your approval.
We test what matters, not just what looks clean.
Material verification: wire, connectors and terminals checked against the specification.
In-process control: first-article and patrol inspection, plus crimp height and pull-out force sampling per terminal manufacturer standards.
Every unit: 100% continuity test on every circuit (no short, no open, no miswire) and pinout verification.
Mechanical checks: connector mating force and locking mechanism.
Optional, per project: Hi-Pot (dielectric) test, pull test, IP67 sealing test, temperature cycling and UV aging.
Test reports for each machine cable assembly, including Hi-Pot, IP rating and environmental cycling, are available for projects that require them.
Why Choose Us as Your Machine Cable Assembly Manufacturer
Mingching Electronics Technology Co., Ltd. was founded in 2009 in Shenzhen and has more than 15 years of experience in custom wire harnesses and industrial-grade cable assemblies. About 70% of our business comes from North America and about 20% from Europe, so we are familiar with the documentation and quality expectations of those markets.
Experience: 15+ years supplying machine cable assemblies to OEM manufacturers in North America and Europe, across industrial equipment, automotive diagnostics, fleet technology and the automotive aftermarket.
Capability: 50+ machines for machine cable assembly production, covering automatic wire cutting and stripping, terminal crimping, assembly, connector insertion, testing and packaging.
Certified processes: ISO 9001 quality management system. RoHS/REACH declarations, UL certification or test reports, Material Content Declarations and Certificates of Origin are available depending on your target market.
Supply stability: two core suppliers plus two to three qualified alternates for key materials, and a production schedule confirmed before we accept an order.
Predictability: clear quotation basis once specifications are fixed, inspection to mutually confirmed drawings and samples, and a delivery plan with milestone updates. We call this price, quality, process and delivery certainty.
We do not promise what we cannot deliver. That is why customers use us for repeat machine cable assembly orders.
Machine Cable Assembly FAQ
Q: What is a machine cable assembly used for?
A: A machine cable assembly connects the electrical parts inside industrial equipment, carrying power, control signals and sensor data between controllers, drives, sensors and motors. Built and tested in the factory, it installs faster than field-wired cabling and is easier to replace.
Q: What is the difference between a cable assembly and a wire harness?
A: The terms overlap. A cable assembly typically uses one or more jacketed cables with connectors on the ends, while a wire harness usually groups individual wires into a branched, bundled layout. We manufacture both, and many machine cable assemblies combine the two approaches.
Q: Can you build machine cable assemblies from my drawing?
A: Yes. We work from engineering drawings, physical samples, photos, pinout tables or a basic application description. If information is missing, we fill in the gaps with you before sampling.
Q: What are your minimum order quantity and lead time?
A: Our MOQ is 10 pieces, and samples can be ready in 7 days once the specification is confirmed. Production lead time depends on order quantity and component availability. We confirm the schedule before the order is placed.
Q: How do you test machine cable assemblies before shipment?
A: Every circuit gets a 100% continuity test, and every pin is verified for correct pinout. During production we sample crimp height and pull-out force. Hi-Pot, pull, IP67 sealing, temperature cycling and UV aging tests can be added per project.
Q: Which cable jacket is best for oil and coolant environments?
A: It depends on the specific fluids, temperature and movement. Tell us the operating conditions and our engineers will recommend a jacket material for your approval, which we can verify at the sample stage.
Q: What standards and certifications do you follow?
A: Our quality system is ISO 9001 certified. Depending on your project, we can provide UL certification or test reports, RoHS/REACH declarations and material content declarations.
Q: What do I need to send to get a quote?
A: A drawing, sample, photo or pinout is ideal, along with the expected quantity and the application. Even an incomplete description is enough to start.
