How to Specify a PLC Control Panel Wiring Harness for Build-to-Print Production: An RFQ Checklist

A PLC control panel wiring harness is a pre-built, tested set of wires that connects the PLC, I/O modules, terminal blocks, relays and power components inside an enclosure. In a build-to-print order, you supply the design and the manufacturer builds exactly to your documents.

The quality of your RFQ package largely decides three things: how accurate the quote is, how smoothly sampling goes, and how consistent production stays. This guide covers what to send, which specifications matter most for PLC panels, how to write test and acceptance clauses, what drives price, and where projects usually stall.

A harness replaces point-to-point hand wiring inside the enclosure. Wires are cut, stripped, crimped, labelled and bundled into branches that follow the panel layout, then tested before they reach the assembly floor.

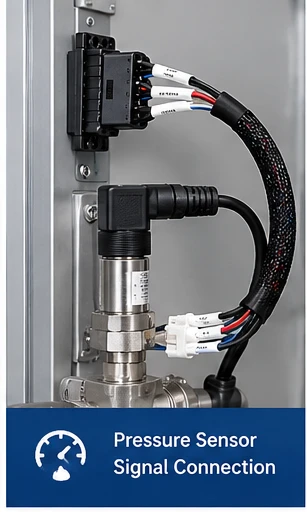

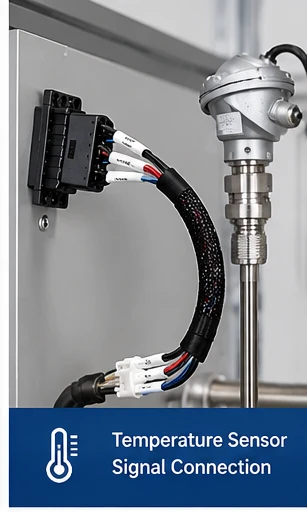

Cables that leave the cabinet are a different product. Motors, sensors and other field devices normally connect through a jacketed, connector-terminated machine cable assembly built for flexing, noise and the shop-floor environment. Many machines need both, and the two are specified differently.

Build-to-print means the customer owns the design. You provide the drawing, bill of materials (BOM), wire list and inspection requirements. The manufacturer builds to them without changing the design, and its job is to confirm the design can be built repeatably, flag risks early and deliver what was agreed.

This differs from build-to-spec, where you define requirements and the supplier proposes the design. It also differs from a supplier-designed product. Build-to-print suits panel builders and machine makers with a proven electrical design who need a repeatable supplier. If your design is unfinished, a manufacturer can help complete the details, but agree in writing who owns the final specification.

Most of a PLC panel harness looks like any other low-voltage harness, but a few features of PLC panels should be reflected in your RFQ:

If some items are not ready, send what you have and flag the gaps. The table separates what is needed to quote accurately from what improves the outcome.

Practical notes on the "must have" items:

BOM and alternates. Manufacturer part numbers, not generic descriptions. Listing pre-approved alternates prevents a stock shortage from stopping the project.

Wire size and rating. Control-circuit wire is often in the range of roughly 0.5–1.5 mm² (about 20–16 AWG), but the right size depends on current, voltage drop, temperature and the standard you follow. State it explicitly for each wire group rather than relying on the supplier's default. Also specify a recognized wire type, for example UL 1007 / UL 1015 style hook-up wire, or the equivalent your market requires.

Tolerances. Give a length tolerance per branch. Branches that are tight in the enclosure but loose on the drawing are a common source of inspection disputes.

Contact now

Instead of asking a supplier to "test everything," decide what the harness needs and put it in the RFQ.

Workmanship standard. Name it. IPC/WHMA-A-620 is the widely used standard for cable and wire harness assemblies, and it defines Class 1, 2 and 3 acceptance levels. State the class you require, because it changes inspection criteria for crimps, solder joints (if any), routing and labelling.

Electrical testing.

Continuity and miswire test on 100% of circuits. This checks opens, shorts and swapped positions against your wire list. It is the baseline for any PLC panel harness.

Dielectric withstand (Hi-Pot) and insulation resistance. Specify these when the harness carries mains-level voltage or your customer or standard requires them. For a purely low-voltage 24 VDC control harness they are often not needed, so do not pay for them by default.

Mechanical checks.

Crimp quality. Ask for crimp height verification and pull-out force sampling based on the terminal manufacturer's specification, with a stated sampling frequency.

Visual and workmanship checks. Labels legible and correctly placed, ferrules fully seated, heat-shrink recovered, connector locks engaged.

Environmental tests. IP sealing, temperature cycling or UV aging matter only for connectors and cables that live outside the enclosure. If your order includes those, list them separately from the in-panel harness.

Documentation. Decide whether you need test reports per lot, a first-article inspection report or certificates of conformance, and say so in the RFQ. If your panel will be certified as an industrial control panel (for example under UL 508A in North America), tell the supplier early which components and wire types your certification file relies on. That is a requirement on the parts you specify, not a certification the harness itself carries.

You do not need a perfect drawing to begin. A physical sample, a pinout table or a clear description of each connection can be turned into a drawing and BOM by the manufacturer's engineers, but you should treat that output as a draft until you approve it.

Expect a few questions on wire type, terminal models, routing and labelling. Small differences in panel layout, wire length and labelling convention often show up only when a sample is fitted into a real enclosure, so plan for one fit check before you release volume.

Ask suppliers to quote on the same basis (same BOM, same tests, same packaging), otherwise the price comparison means little.

The important rule: there should be no "sample standard" and "production standard." The process, tooling and inspection criteria proven on the sample should carry into volume production. Ask the supplier to confirm this in writing, and ask for first-article inspection on the first production lot.
